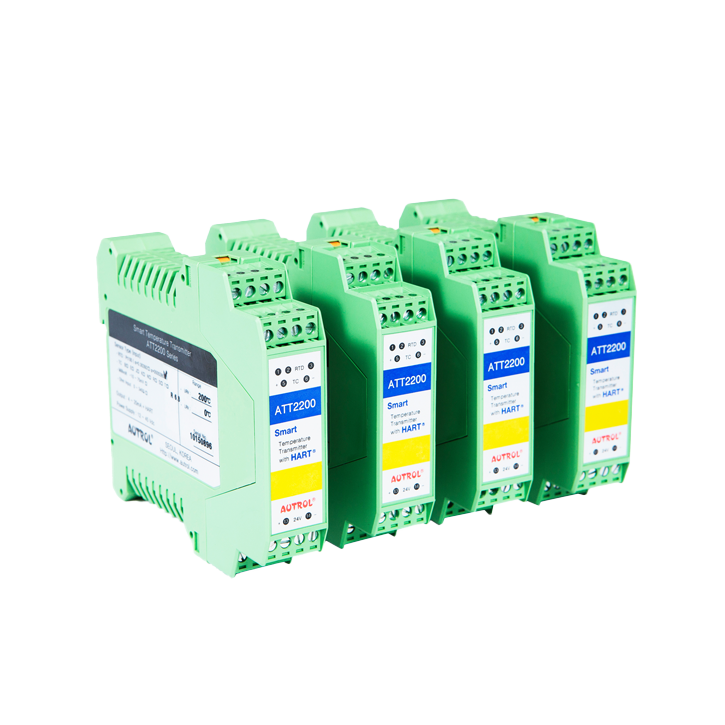

ATT2200
Function
- Type
- DIN Rail type Temperature Transmitter
- Feature
- 4 to 20mA, HART, Loop Powered
- Input
- RTD: a=0.00385 : KS, JIS, DIN, IEC, a=0.00391 : US.
T/C: KSC 1602-1982, JISC 1602-1981, ANSI MC96.1-1982
Millivolt
- Model Name ATT2200
- Protocol Digital Communication, HART 7
- Trim ability DAC
- Power supply & Load Requirement 250 to 550 ohm @ 24 Vdc, Loop Powered
- Falure Mode Low ≤ 3.78 mA, High ≥ 21.1 mA
- Ambient Temp. limit -40 to 85℃ ( -40 to 185℉ )
- Firmware Version 7.X
-
Stability
RTD – 2 years (±0.12% of Reading or 0.15℃ whichever is greater),
T/C – 1 years (±0.12% of Reading or 0.15℃ whichever is greater)
