ALT6200
Function
- Type
- Non Contacted type Level Transmitter
- Feature

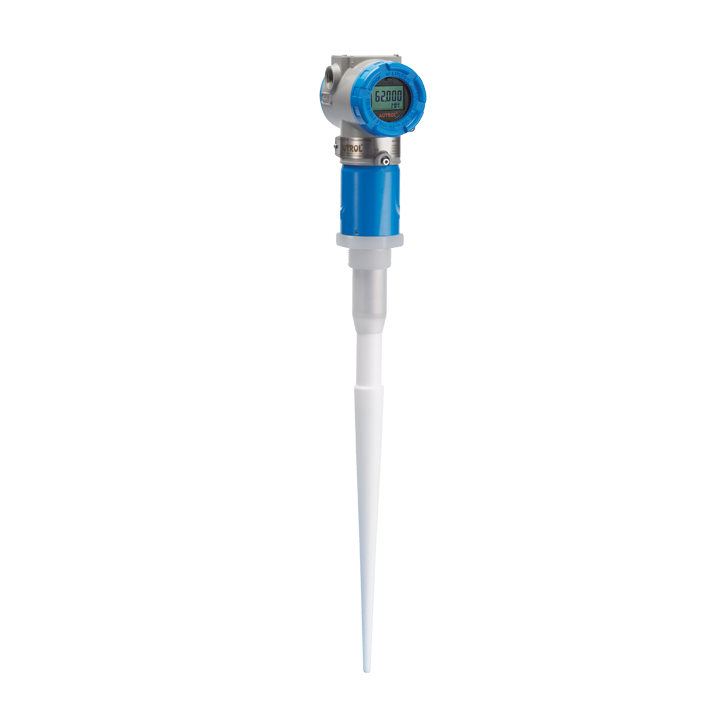

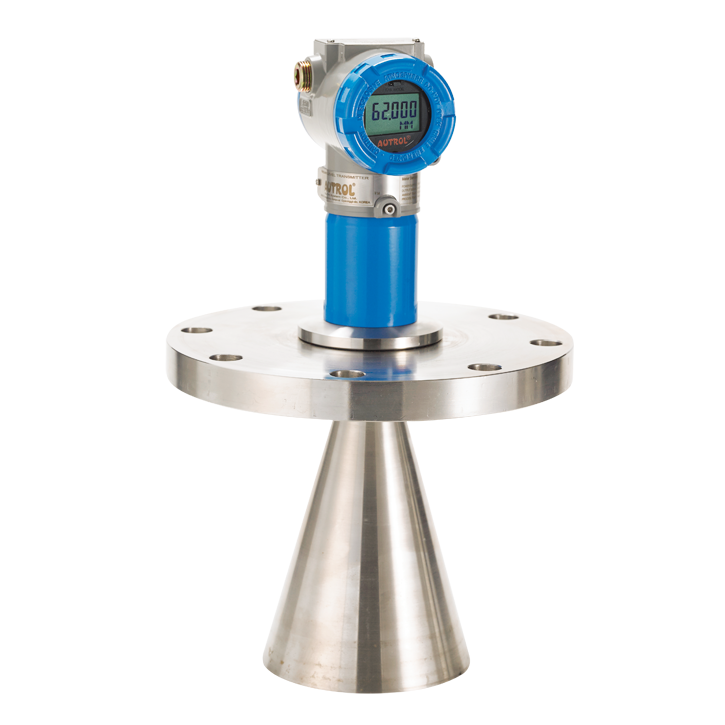

- Horn ANT 3 ~ 8 inch, ROD ANT
- Range
- 0.5 to 30 meter
- Technology
- Pulse RADAR by 6.3 GHz
- Applicable condition
- Swell, Wave, Noise, High Viscosity, Foam
- Point Feature
- Wide Beam Angle (24°)
- Model Name ALT6200
- Protocol Digital Communication, HART
- Trim ability Zero, DAC, FULL
- Power supply & Load Requirement 250 to 360 ohm @ 24 Vdc, Loop Powered
- Falure Mode Low ≤ 3.78 mA, High ≥ 21.1 mA
- External Buttons Zero & Span 2 buttons for device configuration
- Process Temp. limit -40 to 80℃ ( -104 to 176℉ )
- Accuracy ± 10 mm
ALT6200 OUTLINE Drawing
